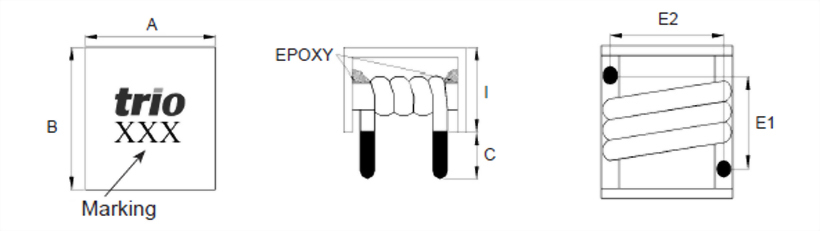

SERIES

A

B

C

El

E2

I

LD-210

10.0 Max.

10.0 Max.

3.4±0.5

4.0±0.5

7.0±0.5

10.0 Max.

LD-110

11.5 Max.

11.7 Max.

3.4±0.5

5.3±0.5

9.3±0.5

9.60 Max.

SMD or THT(PTH/DIP)

SIZE

New Part No.

Old Part No.

Inductance or (uH/nH/mH)

Ω or uH/nH/mH

DCR(Ω, Max.)

Ω or mΩ

IDC or Irms(mA, Max.)

mA or A

A(L)

B(W)

THT(PTH/DIP)

10

10

LD-10A□210□□

MIG0909-1R0□

1.000

uH

0.0028

Ω

20

A

THT(PTH/DIP)

10

10

LD-33B□210□□

MIG0909-R33□

0.330

uH

0.001

Ω

35

A

THT(PTH/DIP)

10

10

LD-39B□210□□

MIG0909-R39□

0.390

uH

0.001

Ω

35

A

THT(PTH/DIP)

10

10

LD-47B□210□□

MIG0909-R47□

0.470

uH

0.0012

Ω

35

A

THT(PTH/DIP)

10

10

LD-68B□210□□

MIG0909-R68□

0.680

uH

0.0017

Ω

35

A

THT(PTH/DIP)

11.5

11.7

LD-12A□110□□

MIG1109-1R2□

1.200

uH

0.004

Ω

21

A

THT(PTH/DIP)

11.5

11.7

LD-30B□110□□

MIG1109-R30□

0.300

uH

0.008

Ω

40

A

THT(PTH/DIP)

11.5

11.7

LD-33B□110□□

MIG1109-R33□

0.330

uH

0.0011

Ω

31

A

THT(PTH/DIP)

11.5

11.7

LD-36B□110□□

MIG1109-R36□

0.360

uH

0.0012

Ω

31

A

THT(PTH/DIP)

11.5

11.7

LD-39B□110□□

MIG1109-R39□

0.390

uH

0.00095

Ω

35

A

THT(PTH/DIP)

11.5

11.7

LD-47B□110□□

MIG1109-R47□

0.470

uH

0.0011

Ω

40

A

THT(PTH/DIP)

11.5

11.7

LD-56B□110□□

MIG1109-R56□

0.560

uH

0.0011

Ω

35

A

THT(PTH/DIP)

11.5

11.7

LD-68B□110□□

MIG1109-R68□

0.680

uH

0.0017

Ω

30

A
