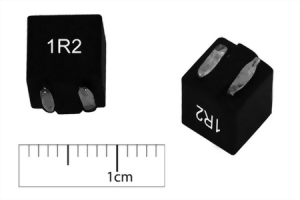

• DIP Molding Power Choke

DIP Molding Power Choke

• Molding type with metal alloy powder construction.
• Large current and shielded design.
• Low DC resistance and low copper loss.
• Ultra low buzz noise.
Model : LM Series

A

B

C

D

E

F

G

H



LM-072

9.0 Max.

9.0 Max.

10.0 Max.

0.9±0.1

4.6±0.5

4.6±0.5

6.5±0.5

6.0±0.5

SMD or THT(PTH/DIP)

SIZE

New Part No.

Old Part No.

Inductance or (uH/nH/mH)

Ω or uH/nH/mH

DCR(Ω, Max.)

Ω or mΩ

IDC or Irms(mA, Max.)

mA or A

A(L)

B(W)

SMD

9.0

9.0

LM-80B□072□□

MFG0810-R80□

0.8

uH

2.7

mΩ

28

A

SMD

9.0

9.0

LM-10A□072□□

MFG0810-1R0□

1.0

uH

3.3

mΩ

25

A

SMD

9.0

9.0

LM-12A□072□□

MFG0810-1R2□

1.2

uH

3.7

mΩ

24

A

SMD

9.0

9.0

LM-15A□072□□

MFG0810-1R5□

1.5

uH

4.5

mΩ

21

A

SMD

9.0

9.0

LM-20A□072□□

MFG0810-2R0□

2.0

uH

5.2

mΩ

18

A

SMD

9.0

9.0

LM-30A□072□□

MFG0810-3R0□

3.0

uH

7.9

mΩ

15

A

• Molding type with metal alloy powder construction.
• Large current and shielded design.
• Low DC resistance and low copper loss.
• Ultra low buzz noise.

• Personal computers & Servers
• VGA cards
• DC/DC converters
• VRMs
